Pick tunnels consist of an aisle set up on the lower level of the racks to enable picking from pallets

Pick tunnels speed up order picking

September 29, 2022

Pick tunnels are an ideal logistics solution for streamlining picking of palletized goods and optimizing storage space in the warehouse.

Employing pick tunnels eliminates unnecessary movements of pickers and goods while increasing efficiency by filling more orders at the same time.

What is a pick tunnel?

Pick tunnels are a logistics solution that consists of setting up a picking aisle inside the racking at floor level. The upper levels comprise the storage system used to hold the reserve pallets.

This warehousing solution is characterized by high-density storage of palletized goods. It lets you allocate the lower levels to order picking and maximize storage space. The goods housed on the upper levels are managed using conventional handling equipment such as forklifts. Pick tunnels are configured to provide high-density storage and facilitate manual picking operations.

Pick tunnels are commonplace in manually run warehouses with palletized goods of different turnovers. Why? They expedite order picking from pallets and simplify replenishment tasks by storing the reserve pallets on the upper levels. Pick tunnels are integrated in the lower levels of storage solutions such as push-back racking (LIFO system) or pallet flow racks (FIFO system).

This logistics option is often confused with pick modules with raised walkways, which offer accessibility to all load levels. As opposed to raised walkways, pick tunnels only allow for order picking on the ground floor; the upper levels hold the reserve pallets.

Advantages (and disadvantages) of pick tunnels

Pick tunnels are a storage system for palletized goods that enable you to:

  • Optimize storage space: they leverage space by compacting the pallets housed on the upper levels and creating a picking aisle at floor level.
  • Increase picking throughput: they facilitate picking because operators only travel in that particular aisle to collect the products that make up the order.
  • Improve goods distribution: they limit operator movements, as the picking area and the zone containing the reserve products used for this operation are located in the same space.

Nevertheless, pick tunnels might not be efficient enough to optimize throughput in warehouses with mass picking. In this case, it’s advisable to replace manual storage systems with automated solutions that ramp up productivity. For example, stacker cranes (AS/RS for pallets) ensure uninterrupted flows of goods to the picking area. They work according to the goods-to-person method, whereby the robot moves the required products automatically to the operator’s location.

The Pallet Shuttle system allows for the installation of an aisle on the lower level to facilitate picking
The Pallet Shuttle system allows for the installation of an aisle on the lower level to facilitate picking

Pick tunnel configuration

With high-density storage systems, there are multiple configurations for storing reserve pallets on the upper levels and for performing picking at floor level.

These are the most typical configurations for combining pallet storage with a pick tunnel:

  • Pallet flow racks: pallets are loaded in one aisle and removed on the other side by means of sloped channels and gravity. This system is perfect for guaranteeing turnover, as the goods are stored according to the FIFO (first in, first out) method.
  • Push-back racks: pallets are inserted and removed in the same aisle, in line with the LIFO (last in, first out) method.
  • Pallet Shuttle system: pallets are deposited and extracted from the same aisle. A motorized shuttle moves the products in the storage channel, speeding up storage and retrieval operations.

Pick tunnels also offer multiple combinations for performing picking at ground level. These are the most popular:

  • Flow channels: these channels have wheels that move the pallets by gravity to the working aisle, where operators pick products. This system increases the number of order picking lines and reduces operator travel.
  • Pallets on the floor: operators pick directly from the pallet on the floor using manual handling equipment, e.g., a pallet jack.
  • Carton flow racks: the storage of reserve pallets on the upper levels can be combined with carton flow racks in the pick tunnel. This streamlines the picking of small items.

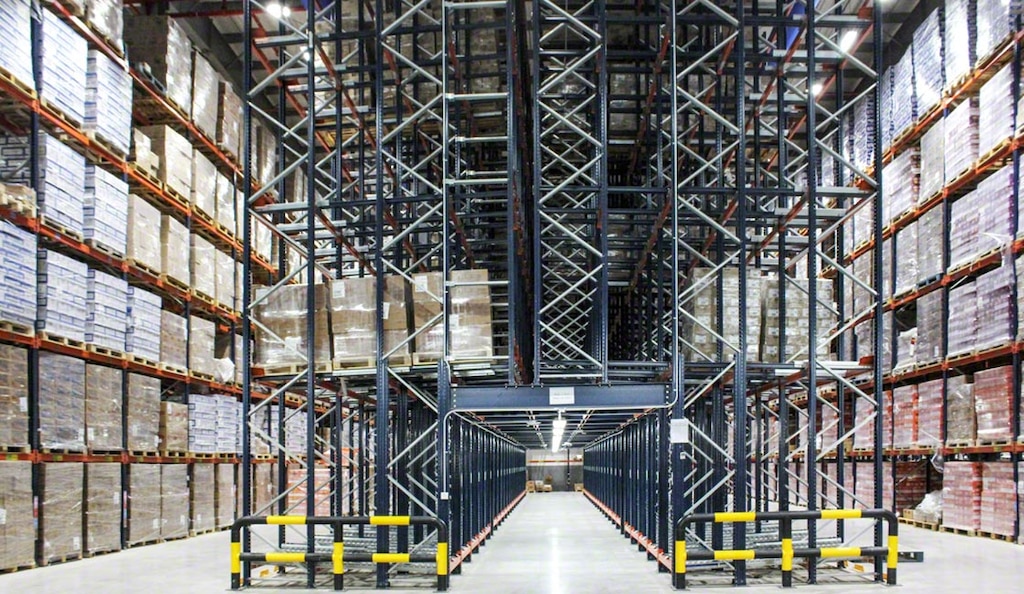

A pick tunnel streamlines order picking in the Tamer logistics center in Saudi Arabia
A pick tunnel streamlines order picking in the Tamer logistics center in Saudi Arabia

Examples of pick tunnels in warehouses

Pick tunnels are a go-to solution for optimizing storage capacity and boosting picking throughput in logistics facilities. One example can be seen in the logistics center of Coca-Cola Refrescos Bandeirantes in Trindade, Brazil. Mecalux outfitted the facility with a pick tunnel used with flow channels for boxes and for pallets to accelerate operations. The upper levels contain two racking units with the Pallet Shuttle system, where an automatic shuttle speeds up the storage and retrieval of palletized goods.

Pick tunnels are also used in Nestlé Purina’s warehouse in Teno, Chile. Three 33-foot-tall racking units run by the semi-automated Pallet Shuttle system provide a storage capacity of 7,278 pallets. In two of these units, Mecalux has set up pick tunnels to perform order picking directly from the pallets in the flow channels. “The reserve pallets are stored in the same channel, so we always have the products we need to pick,” says Héctor Olmos, Warehouse Manager at Nestlé Purina in Chile.

Another example of this solution can be seen in the facility of logistics provider Tamer in Jeddah, Saudi Arabia. Mecalux equipped the warehouse with a personalized solution combining pallet racks, high-density racking with the Pallet Shuttle system, and push-back racks. A pick tunnel was created on the lower part of the 10 push-back racking units. It consists of flow channels on both sides, where operators perform picking. This setup facilitates replenishment of the flow channels for picking. That is, the reserve pallets are kept in the push-back racks in the upper levels of this storage system.

Mecalux set up a pick tunnel in the center of Coca-Cola Refrescos Bandeirantes in Brazil
Mecalux set up a pick tunnel in the center of Coca-Cola Refrescos Bandeirantes in Brazil

Pick tunnels for warehouse optimization and throughput

Pick tunnels can be incorporated in a number of manual storage systems. This logistics solution facilitates order picking, optimizes space, and, most notably, streamlines stock replenishment: storing the reserve stock on the upper levels avoids unnecessary movements in the facility.

At Interlake Mecalux, we feature a wide range of personalized solutions to adapt to the demands and requirements of each warehouse. Be sure to get in touch. One of our expert consultants will advise you on the best storage system for your facility.
