Automated Pallet Shuttle

Automated Pallet Shuttle

The automated Pallet Shuttle is a compact pallet storage system that uses an electric shuttle and automated handling systems to boost capacity and productivity in the warehouse.

Request information and/or a quote


Automated Pallet Shuttle: combining benefits to give you the edge

This system combines automatic handling equipment with compact storage systems. It enables companies to cut costs, enhance their supply-chain performance, and, thus, differentiate their product and service offerings.

With this storage solution, forklifts are replaced by stacker cranes or transfer cars, which transport the motorized shuttle and the load in their cradles. The shuttle is inserted into the storage channels, placing each of the pallets in the deepest available position. This is all done by following orders generated by the Easy WMS Warehouse Management System.

In short, the automated Pallet Shuttle optimizes the storage capacity of compact systems while reducing the times used in each operation of an automated system.



Automated Pallet Shuttle: perfect solution for mass movement of product

The installation of a high-density AS/RS with the Pallet Shuttle is especially suitable in cases requiring a marked increase in productivity and, hence, that need to move a high number of pallets/hour.

In general, this solution is appropriate in the following cases:

  • Compact storage of palletized goods and mass storage of products.
  • Warehouses with medium- and high-consumption SKUs or with a large number of pallets.
  • Facilities with fast product turnover requiring extremely high throughput and maximum use of space.
  • Cold storage: the volume that needs to be cooled is reduced, resulting in energy-cost savings. Additionally, the presence of operators in low-temperature environments is unnecessary, considerably increasing the number of movements made.
  • Storage buffer.
  • Ideal for deep racking with mass inflows and outflows of the same product.
The Automated Pallet Shuttle is ideal for warehouses with consumer products.


Bringing together the benefits of compact storage and automation

  • Maximum space savings in compact systems with storage channels up to 131' deep and racking over 131' tall.
  • Rapid movement of the electric shuttle, which reduces goods entries and exits.
  • Major increase in the number of cycles/hour compared to other storage systems.
  • Goods-to-person system, whereby the load is moved to the pick stations automatically.
  • Shuttle supercapacitors are charged automatically while onboard the stacker crane or transfer car, so the shuttle is always ready to go.
  • Cost savings in handling equipment, warehouse surface area, staff, and energy (especially in freezer warehouses).
  • System that allows for different configurations depending on the number of SKUs, quantity of pallets, and movements required in each case.
  • Compact automated storage and retrieval systems (AS/RS) operating with the Pallet Shuttle ensure the utmost safety of the operators, the load, and the AS/RS itself.


Compact AS/RS with Pallet Shuttle

In automated storage and retrieval systems (AS/RS) with the Pallet Shuttle, forklifts are replaced with automatic handling equipment, stacker cranes, or transfer cars. This considerably reduces the time used for each operation.

The choice of handling equipment will depend on the number of entry and exit movements, the number of SKUs, and the quantity of pallets per SKU or batch. The key difference between the two systems lies in the potential number of pallets that can be moved by a solution with transfer cars compared to one with stacker cranes, as this quantity is multiplied by the number of levels the system has.

  • Automated Pallet Shuttle with stacker crane

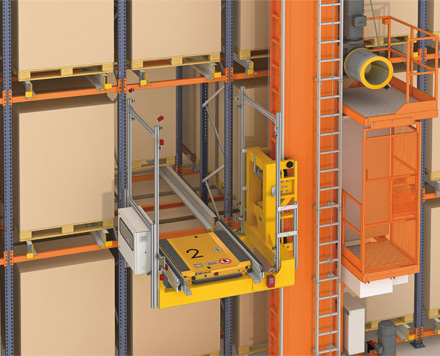

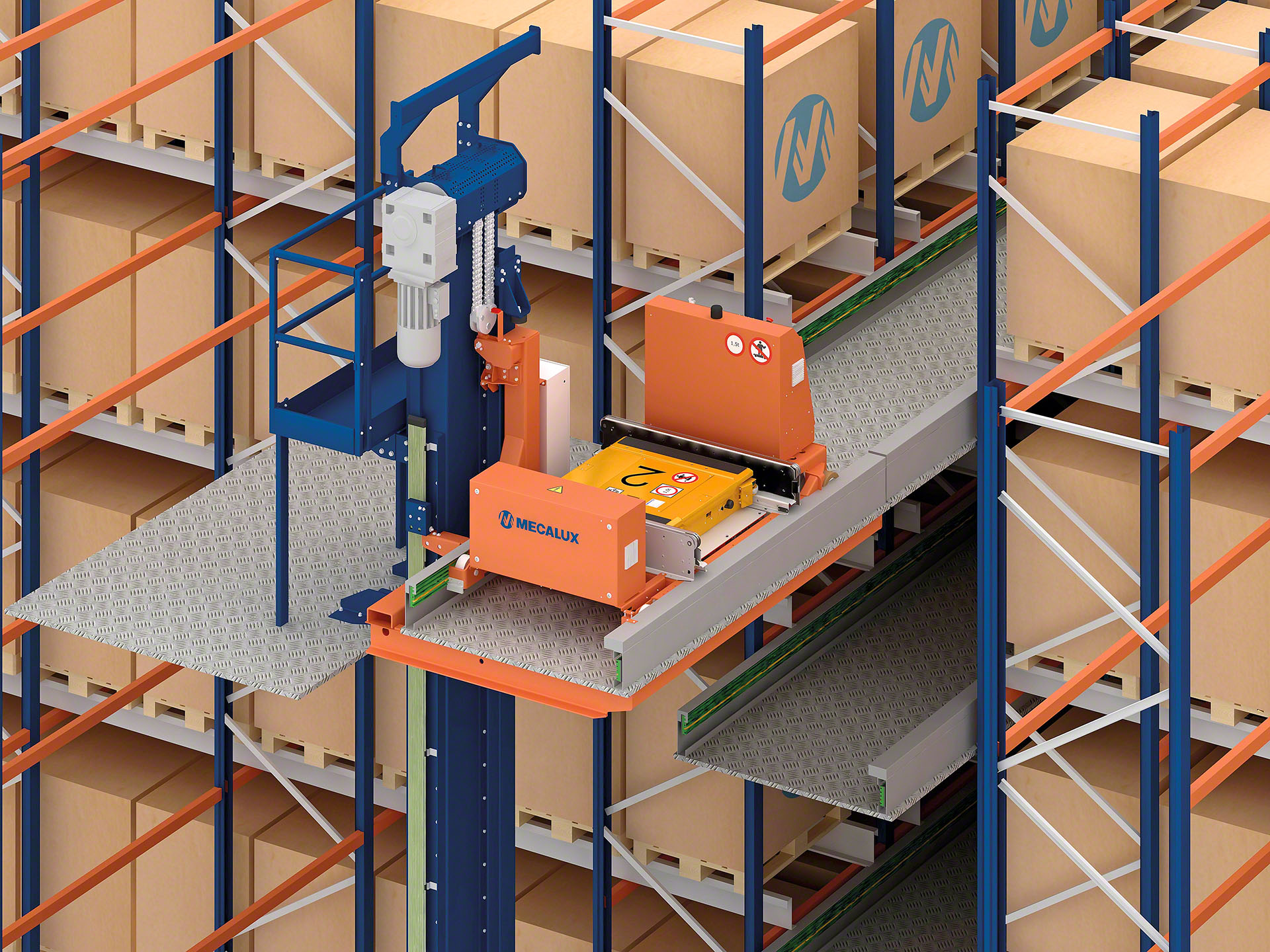

    The stacker crane is responsible for transporting pallets from the AS/RS entry and exit points to any storage channel. The Pallet Shuttle is charged with moving the pallets from the cradle of the stacker crane to their location in the corresponding channel.

    Generally, two high-density racking units are installed, one on each side of the working aisle. This configuration increases capacity, as the main aisle is small (less than 63" wide). Moreover, the use of stacker cranes allows for the storage height to reach over 131'.

    Thanks to its integration with the Easy WMS warehouse management system, in addition to increasing capacity, this solution considerably boosts productivity. That is, it makes it possible to raise the number of cycles/hour and accurately control stock and all movements made in the facility.

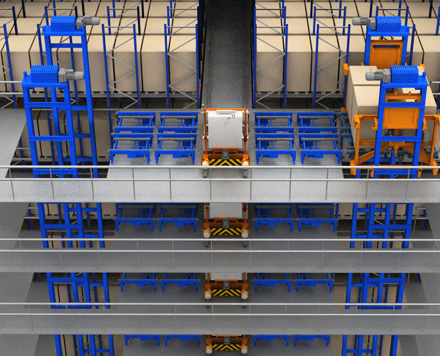

  • Automated Pallet Shuttle with transfer car

    With this solution, a walkway-like structure with guide rails is installed to enable a transfer car to operate on each level. As with the solution with stacker cranes, two high-density racking units are normally set up, one on each side of the working aisle.

    The transfer car is a non-continuous pallet conveyor that runs on rails in a straight line, moving the goods from one point to another in the AS/RS. Likewise, it incorporates another transport element on board where the shuttle is located, with drag chains for pallets. To connect the different levels of the AS/RS, lifts are used to perform vertical movements.

    All management and automated control — with the relevant criteria selected for operation, location, assignment, picking, etc. — are carried out by means of the Easy WMS warehouse management system.

    In AS/RS with transfer cars, the number of movements or cycles/hour is multiplied by the number of levels in the AS/RS. It is the most efficient compact storage system for combining high capacity with a high number of movements.


Technical data

Pallet width 47.2"
Pallet depth 31.5"/39.4" x 47.2"
Load capacity Up to 1.65 tons
Wheels 8
Travel speed without load Ambient: 361'/min; cold: 249'/min
Travel speed with load 230'/min
Lift time 2 s
Operating temperature Ambient: from 41 to 113 °F; cold: from -22 to 41 °F
Battery Supercapacitors

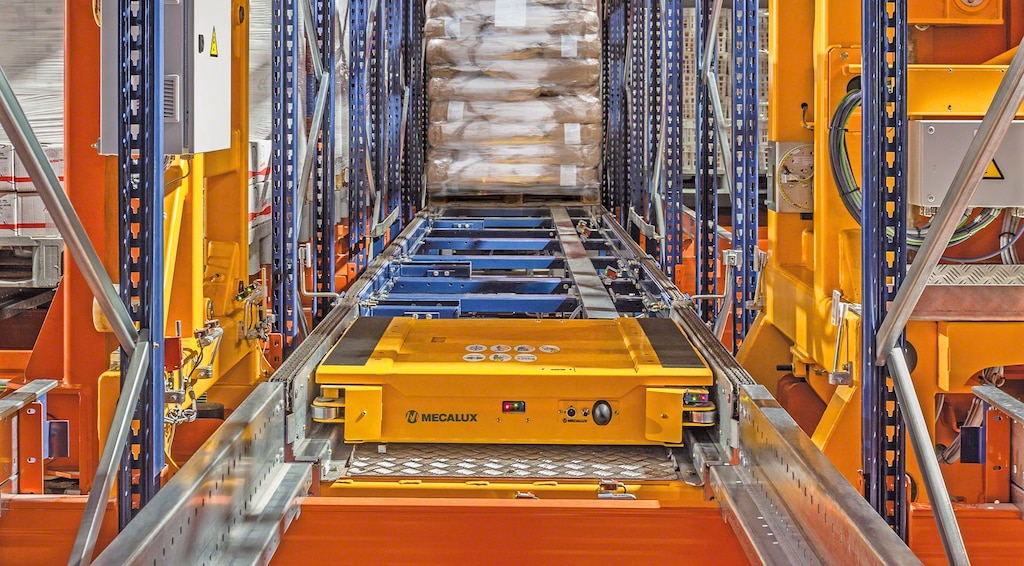

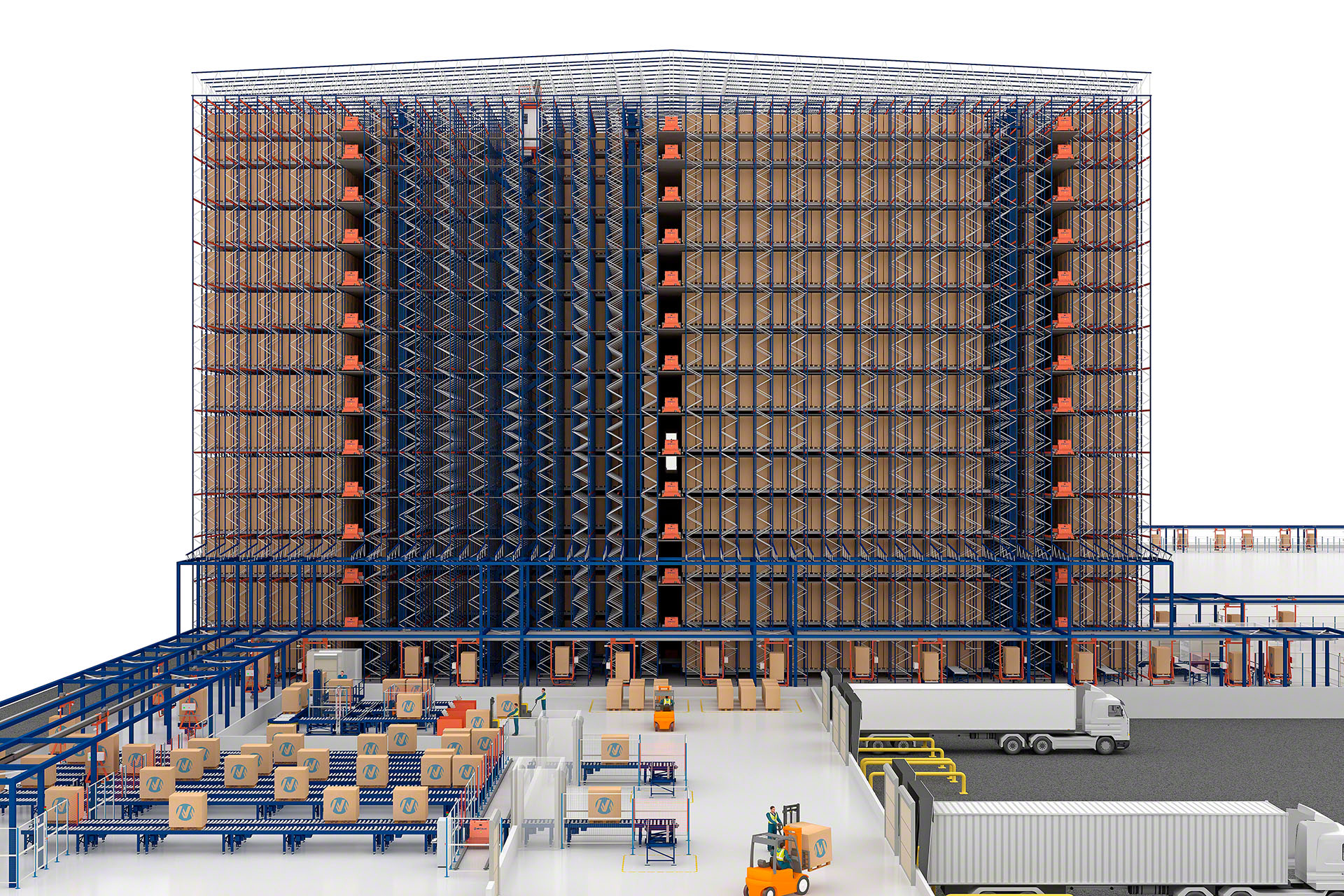

The automated Pallet Shuttle ensures maximum efficiency in high-density storage systems

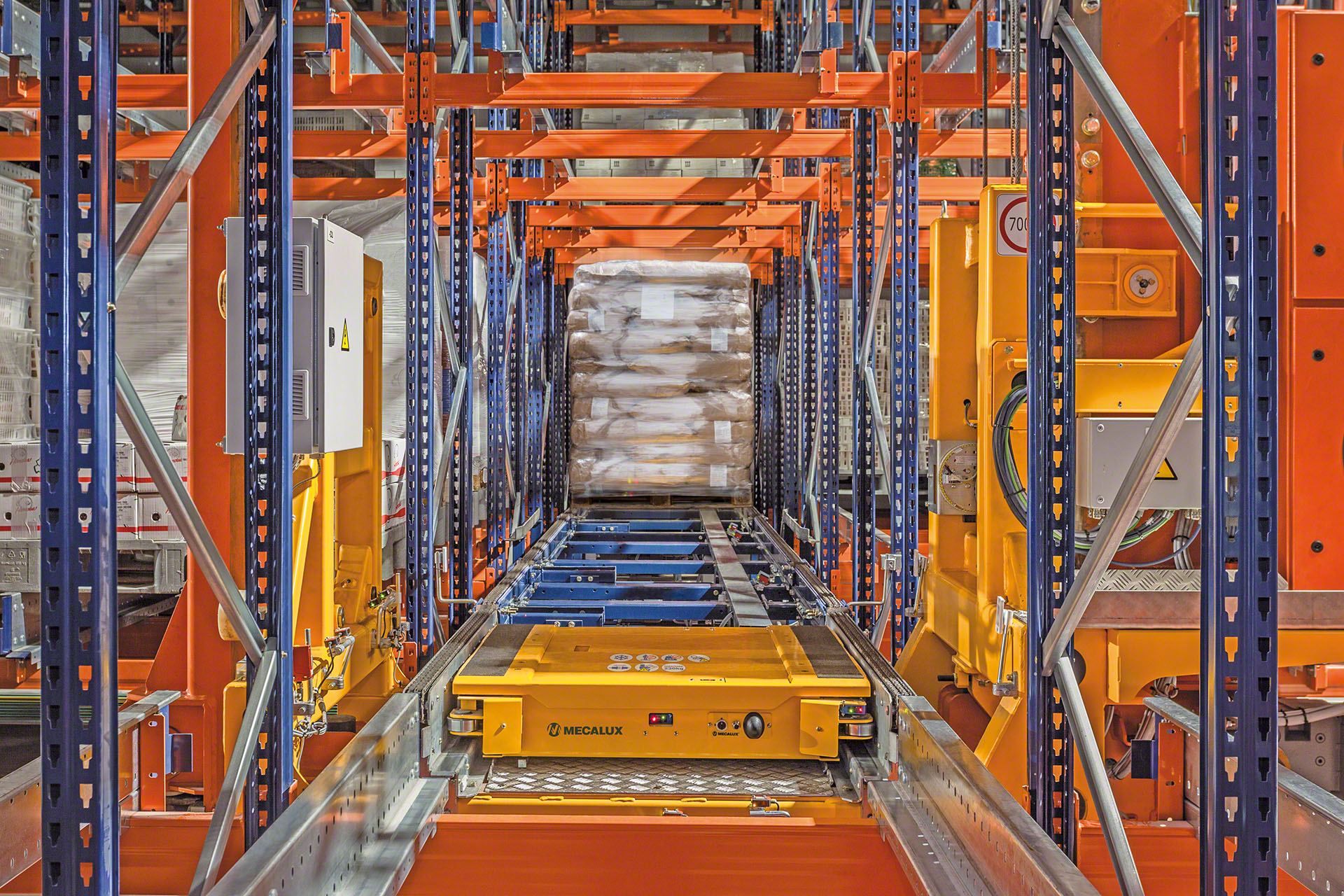

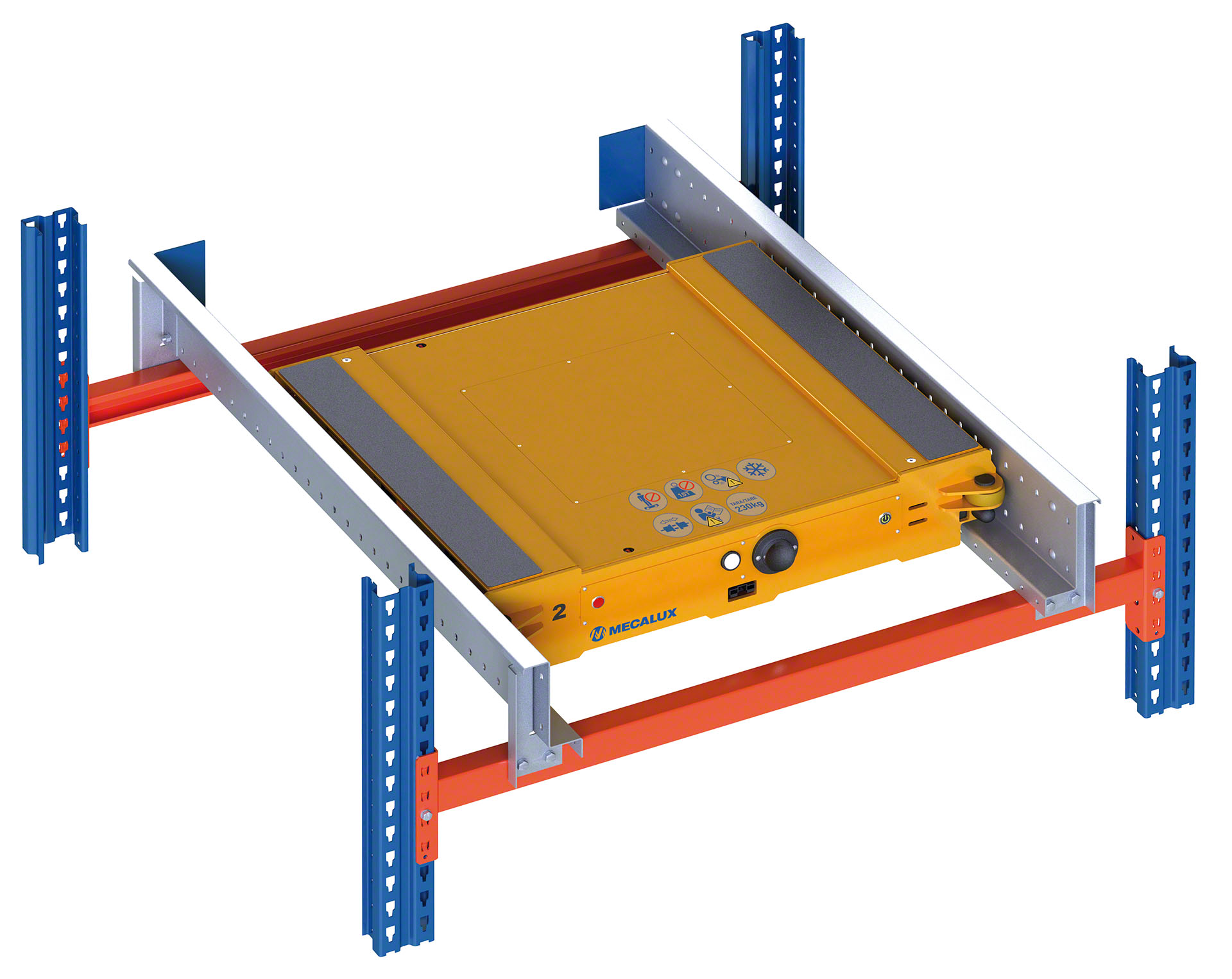

The shuttle is inserted into the storage channels to compact the pallets

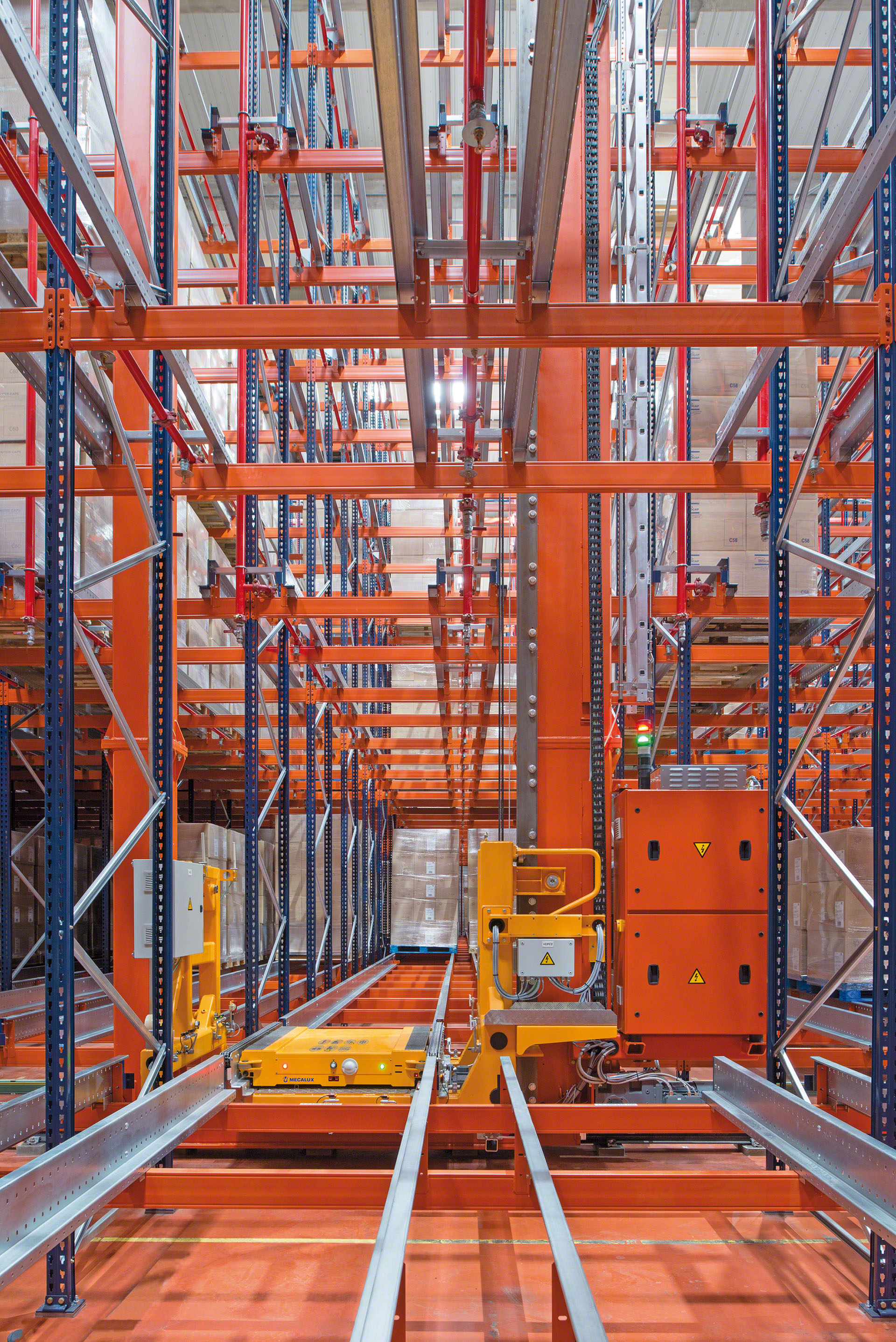

Thanks to the stacker crane, the APS can operate at different heights
In automated warehouses, the APS is the ideal system for automating pallet loading and unloading

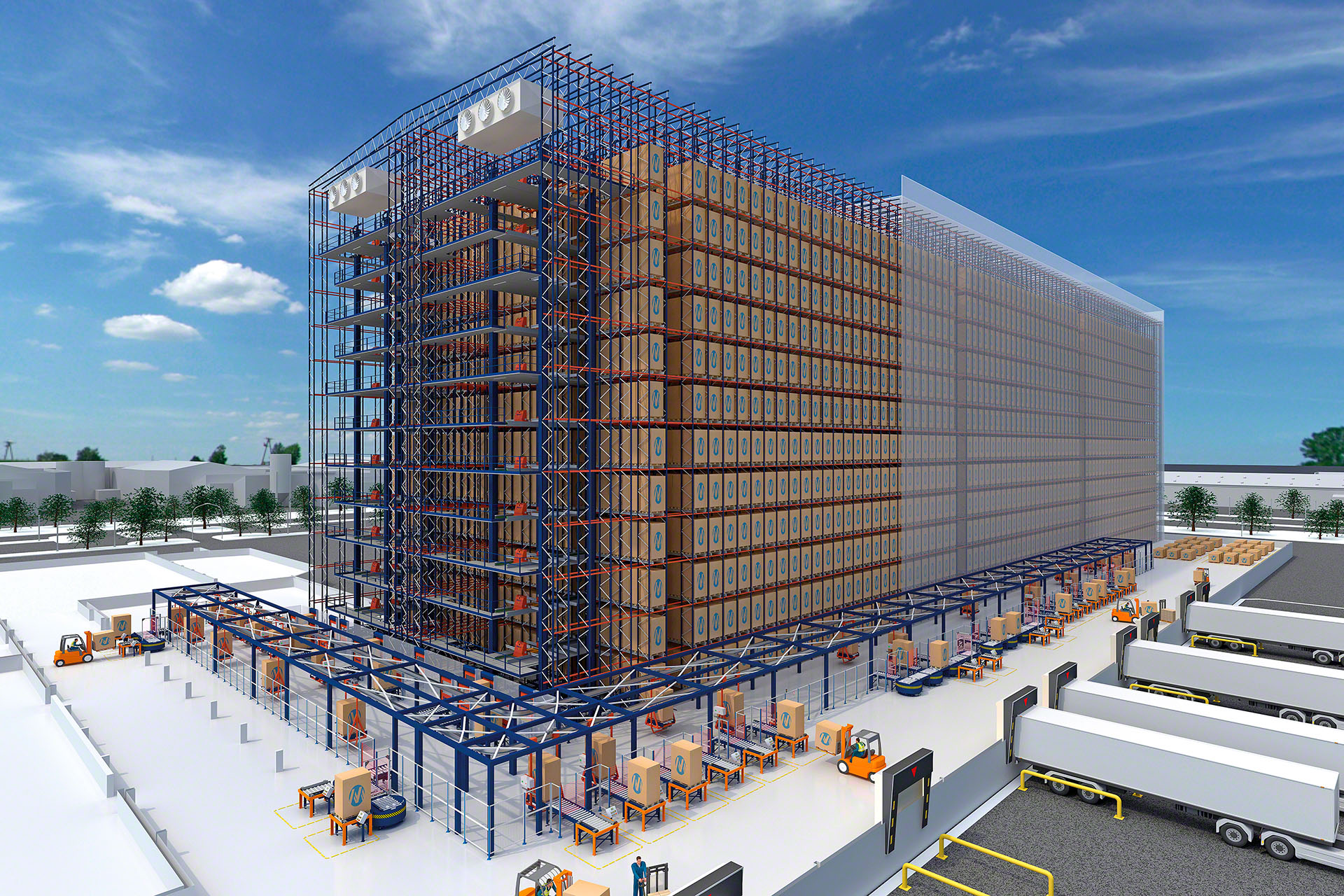

The automated Pallet Shuttle system ensures maximum use of space on high-bay racks

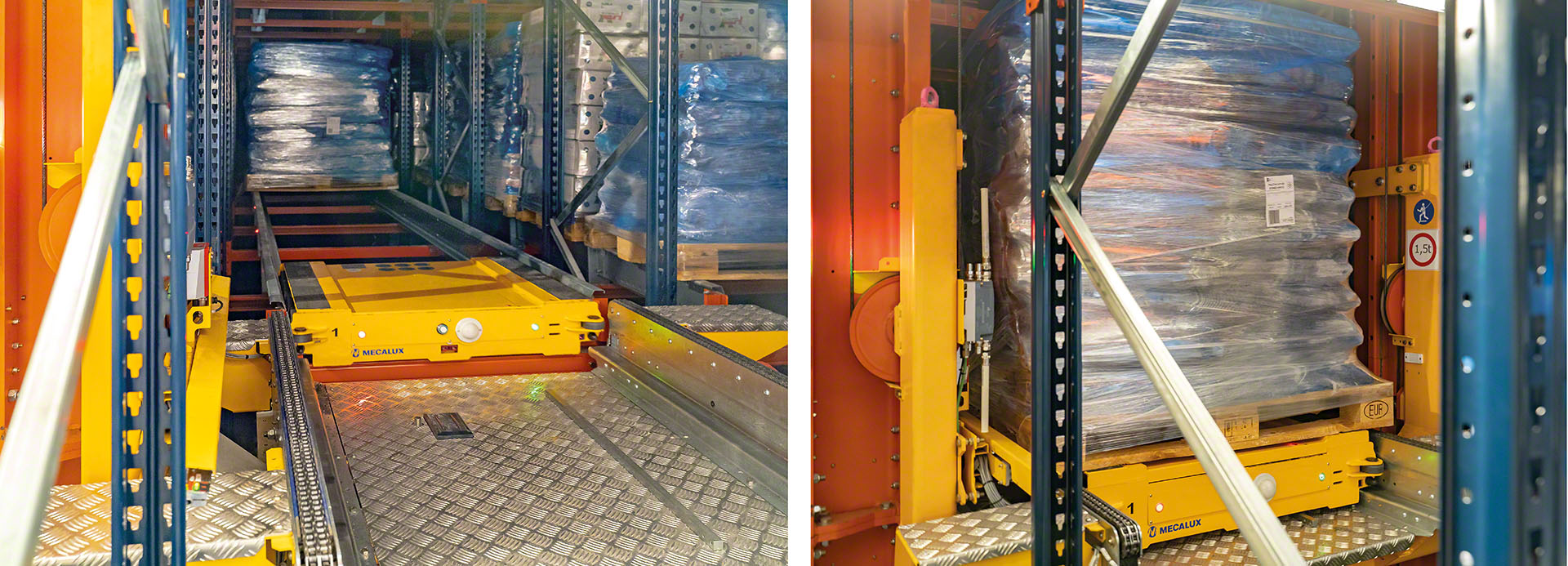

The APS is positioned in a storage channel and places the pallets in the nearest slot to be unloaded
This automated device ensures the capacity utilization of racking up to 131' deep
The automatic shuttles can carry a maximum load of up to 1.65 t
The electric shuttles incorporate lithium batteries for a cable-free system
The automatic shuttles have safety components such as pallet centralizers and rail stops, among others

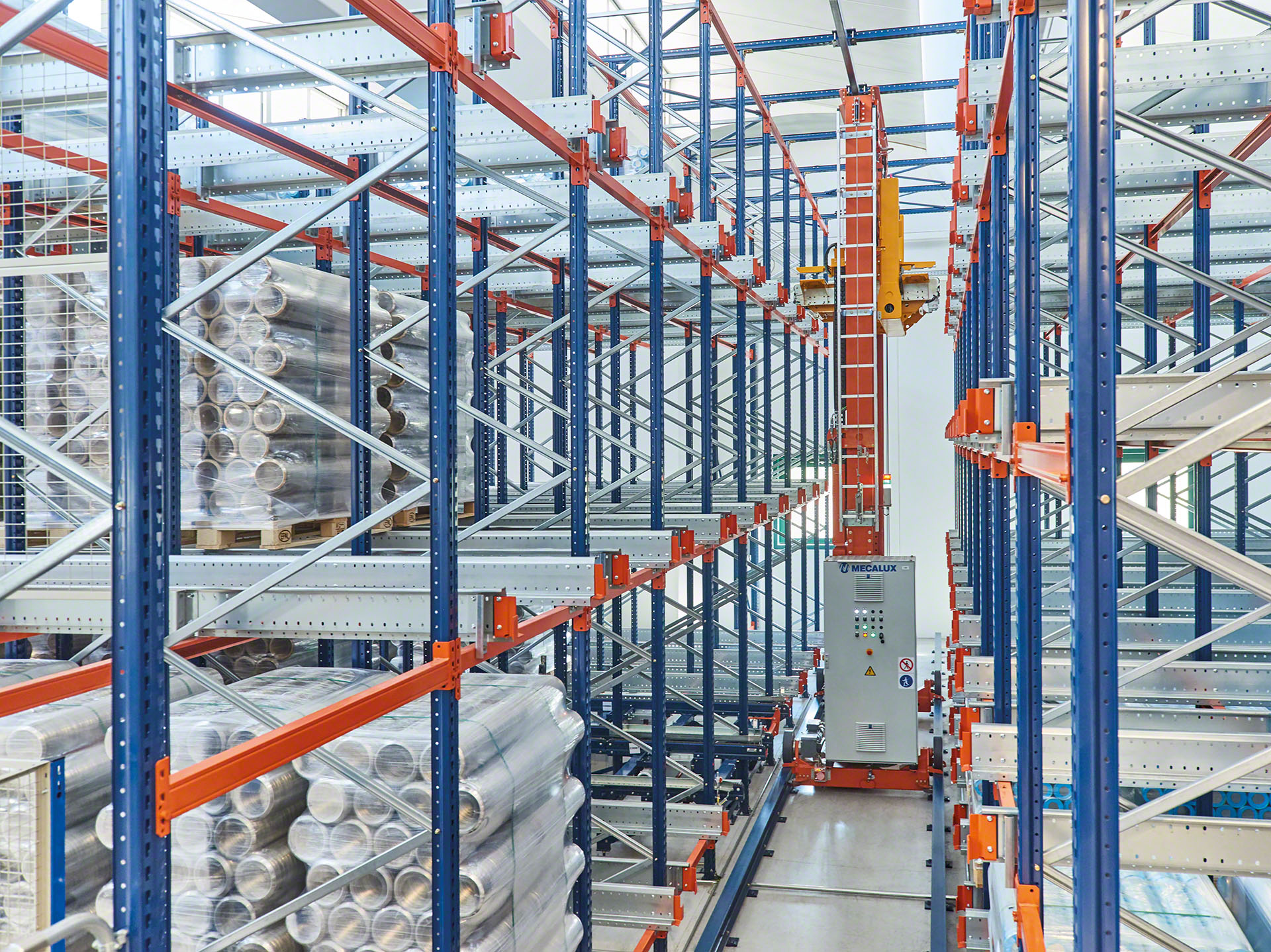

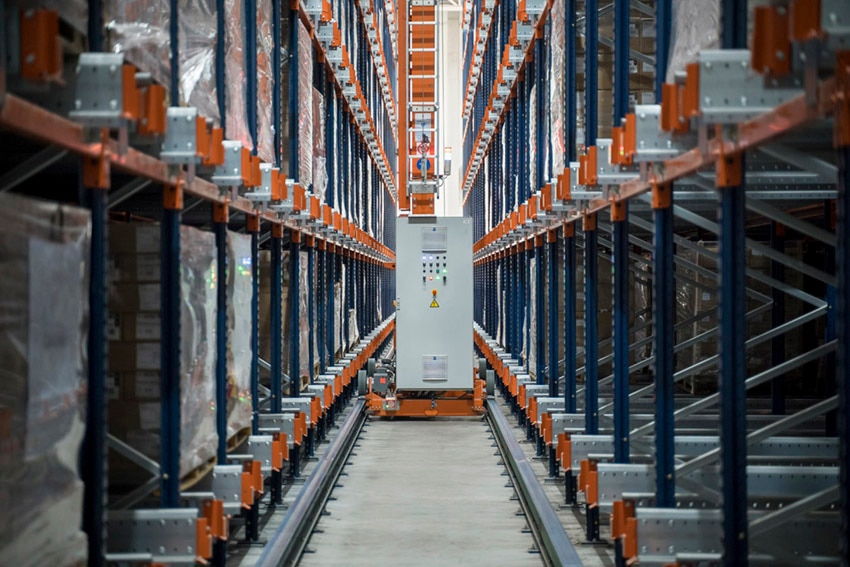

The APS with stacker crane is easy to maintain, thanks to its electrical cabinet
Easy WMS, the WMS from Mecalux, manages the tasks of the automated Pallet Shuttle
In low-turnover warehouses, it is not necessary to have a shuttle for each level. Instead, one lift platform is sufficient to place the shuttle as per needs
Automatic shuttles tend to be connected to other automated transport systems such as conveyors
The storage channels must be adapted so that the Pallet Shuttle can be inserted into each lane
The automatic shuttle has multiple safety components, including a scanner and pallet detector
The combination of a stacker crane and the APS maximizes storage capacity, as only a small aisle is required
Two stacker cranes with automatic shuttles, together with EASY WMS, guarantee full automation of an AS/RS, even those with high turnover
The stacker crane is charged with guiding the automatic shuttle to the storage channel where the goods are located
The automated Pallet Shuttle system can be adapted to low-bay warehouses
The union of the stacker crane and APS means optimized storage capacity in high-bay systems
The automatic shuttle can adapt to pallets containing different unit loads
The automated Pallet Shuttle system with stacker crane is effective for products from different sectors
In compact pallet racking with the APS, the lower level can be used as flow racks for picking to optimize warehouse space
The combination of the transfer car and APS guarantees a large storage capacity and a high number of cycles
Automated systems such as the APS are ideal for cold stores, as they are fully resistant to extreme environmental conditions
The pairing of automated systems with a rack-supported structure optimizes the capacity of a storage facility
The transfer car inserts the APS into the lane to sort pallets with just one action
The transfer car is in charge of inserting the automatic shuttle into each of the storage aisles
Automatic pallet lifts are often installed to automate processes without the need for a stacker crane
The transfer car has its own maintenance floor surface to ensure the system’s safety and operation
The transfer cars operate independently of each other, which accelerates the flow of goods in the warehouse
APS storage systems with transfer cars have safety elements for operators to control operations properly
The shuttle system has multiple safety features, such as access platforms
Installation of an APS system can optimize low-bay warehouses
In high-capacity facilities, automatic shuttles have become established as the most effective warehouse management solution
The automated Pallet Shuttle ensures energy savings in cold storage warehouses
By means of an aisle with a transfer car, the automatic shuttle can operate in different bays in the same AS/RS
The Pallet Shuttle system can work with AGVs to fully automate a warehouse
