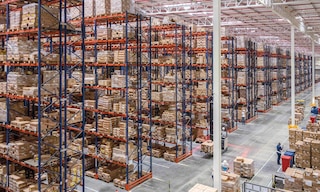

Pallet racks are structures designed to hold pallets

Pallet rack guide

February 13, 2024

Pallet racks are storage solutions that accommodate the products companies need to supply their customers.

There’s a diverse range of racking on the market to meet even the most complex and demanding storage requirements. So, how do you choose the ideal solution for your warehouse? By considering factors such as the capacity or agility you want to achieve, available floor space, product variety, and the project cost.

What are pallet racks?

Pallet racks are structures designed to house palletized goods on rows of horizontal shelving spanning multiple levels in height. Their distribution in the warehouse forms a set of aisles where operators with forklifts — or automatic handling equipment — store and retrieve materials from the racking positions.

When it comes to stock management, there are several methods and criteria you can employ. Although it’s possible to put pallets directly on the floor or stack them on top of each other, pallet racks improve the organization of warehouse space. Pallet racks are typically seen in companies with products shipped to different destinations, ensuring efficient inventory distribution.

What components do pallet racks have?

In terms of construction, many pallet rack components are the same for all storage systems. These are the basic pallet rack parts:

  • Frame. Metal structure made up of two vertically positioned posts joined together.
  • Shim. Metal component placed under posts to level uneven flooring.
  • Anchor bolt. Part that secures the racks to the floor slab. It’s selected based on the type of floor and stresses that the entire structure must withstand.
  • Beam. Horizontal profile used to hold the pallets. It’s attached to the frame by means of connectors or endplates welded at its ends.

Depending on the solution you choose (shelving, direct-access racking, high-density systems) and the type of product to be stored, you can incorporate additional profiles and specific accessories. These include crossbars, shelves (wire mesh, metal, or wooden), and supports for cylinders and coils.

Basic selective pallet rack components
Basic pallet rack components

What advantages do the various types of pallet racks offer?

Pallet racks generally fall into two main subcategories: those that allow direct access to products and high-density systems.

The benefit of direct-access systems is that they facilitate product handling and ensure optimal storage space occupancy. Within this category are:

  • Single-deep selective pallet racking. These racks stand out for their versatility. They feature accessories and add-ons to adapt the storage locations to any type of unit load, with different sizes and characteristics.
  • Double-deep selective pallet racking. Racks are placed one behind another to increase storage capacity without sacrificing direct access to products.
  • Cantilever racks. These are designed to hold bulky goods with variable lengths, such as profiles. They enable operators to handle this merchandise easily and visually monitor each item.

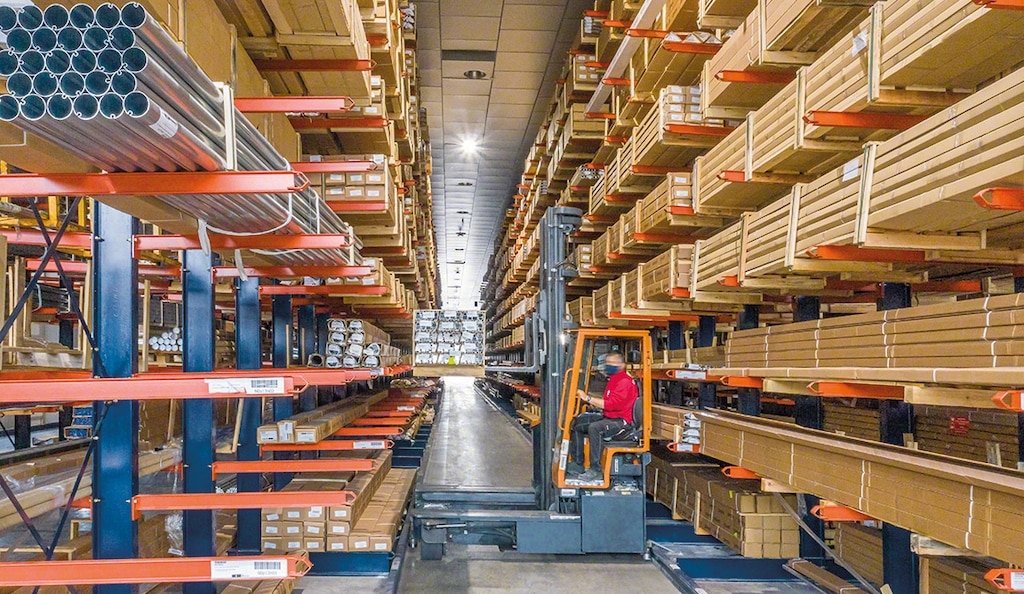

Cantilever racks consist of overhanging arms attached to columns to store bulky goods
Cantilever racks consist of overhanging arms attached to columns to store bulky goods

One of the primary advantages of high-density systems is that they offer a higher surface area occupancy, thus providing more storage capacity.

  • Movirack mobile racking systems. These racks reduce the minimum number of working aisles required, accommodating more products without forfeiting direct access.
  • Drive-in drive-thru pallet racks. These make the most of available space, both horizontally and vertically.
  • Pallet flow racks. These systems feature slightly sloped storage channels with rollers. Pallets are loaded on the higher side and slide by gravity to the opposite end. This ensures flawless product turnover according to the FIFO method (first in, first out).
  • Push-back racking systems. These racks also work in line with the gravity flow principle, but pallets are inserted and removed from the same end. They facilitate and expedite the entry and exit of loads from their locations.
Pallet flow racks streamline the movement of goods
Pallet flow racks streamline the movement of goods

Pallet racks can also be automated by incorporating automatic handling equipment, which stores and retrieves products from their locations autonomously.

  • Stacker cranes. These machines load and unload pallets from their positions. They can operate with single- and double-deep racking and pallet flow racks.
  • Pallet Shuttle. A motorized shuttle is inserted into the storage channels, depositing each of the pallets in the deepest available space. This system increases storage capacity and agility while speeding up entries and exits.
In temperature-controlled warehouses, the Pallet Shuttle reduces the volume to be cooled, lowering energy consumption
In temperature-controlled warehouses, the Pallet Shuttle reduces the volume to be cooled, lowering energy consumption

How do you select the right pallet racks?

The design and dimensions of your pallet racks will depend largely on variables such as the characteristics of your products, their weight, and their handling position. Another factor is the handling equipment that will insert and remove the loads.

When choosing the ideal system, the racks should be versatile enough to adapt to different load types. This is why the components and even the materials used to make them are subjected to rigorous tests and quality controls to predict their behavior.

Similarly, OSHA requirements come into play. These govern key aspects like safety and load capacity, ensuring storage in accordance with quality and security standards.


Exploring the possibilities of pallet racking

Pallet racks are an essential tool in warehouse management and business logistics. They provide an excellent organization of space and goods while making operations more agile.

When selecting the most suitable solution, it’s important to consider factors such as available floor space and target storage capacity. Pallet racks are crucial for any company seeking to maximize its warehouse throughput. At Interlake Mecalux, we’re backed by more than 55 years of experience researching and developing logistics solutions for businesses in all sectors. Be sure to get in touch. We’ll help you find the best storage system to organize your logistics operations.
