Comparing pallet rack capacity

The pallet rack capacity information compared in this article can be used to identify the most appropriate system to provide the best physical capacity ratio. However, physical capacity is not the only criterion to be taken into consideration. There are other equally essential factors, such as the speed of handling the pallets with one specific configuration or another.

On the other hand, the physical capacity of a warehouse (the maximum number of pallets that can be stored at one time) is not always the same as its effective capacity, which is merely that which can be obtained in a normal working cycle, in accordance with the maximums and minimums for the SKUs and the space required for each. Here, the positioning system used is vital.

The specific positioning system requires a certain number of spaces to be reserved for each SKU, except for those that can share positions with others. When goods enter a warehouse, all available spaces are filled but are then emptied as the orders are prepared. Given that these are reserved and cannot be filled with other SKUs, the effective capacity will be lower than the physical capacity. Specifically, the effective capacity will be the minimum stock plus half of the difference between said minimum stock and the number of spaces assigned to that SKU. Effective capacity with these specific positioning systems is between 55% and 65% of real capacity.

When working with random positions, the management system assigns positions to the pallets, which will be stored at random in any empty space. The WMS records the position and provides it to the operator when necessary. In this case there are almost no empty spaces, so the effective and physical capacities will be very similar (between 80% and 92%).

Unless these differences are taken into account, the solution chosen for the warehouse may not be the correct one. While any system can operate with the two positioning types mentioned, compact storage systems, for example, are inflexible. They can provide greater physical capacity than other systems, but they may actually provide lower effective capacity.

To illustrate the differences that can arise in installations when using one storage system or another, the following is a hypothetical example of a warehouse with specific measurements and a particular unit load. Different solutions (configurations and handling equipment) are offered for this hypothetical case and the results of using each method are shown.

Capacity is calculated on the basis of the surface area and defined for a storage level, since height is a variable that depends on the building itself and the lifting height of the forklift. To help with the comparison, the space required for the reception and dispatch areas has not been taken into account either. The unit load chosen is a 31.5 in x 47.2 in pallet (Euro pallet), which in the pallet racking system means that up to three of these pallets can be stored in each 106.3 in wide space.

The capacity (and therefore, the occupied capacity) is specified per level, i.e., by the surface, not by the total volume of the installation.

Pallet rack capacity comparison.

Unit load: 31.5 in x 47.2 in pallet.



Pallet rack capacity starts with the available surface area



Example 1. Pallet racks with counterbalanced forklift. 594 pallets per level.

System: selective pallet racks.

Aisle: 11.5 ft. A minimum 11.8 ft between racking units.

Handling equipment: counterbalanced forklift

Capacity obtained: 594 pallets per level.




Warehouse layout 1

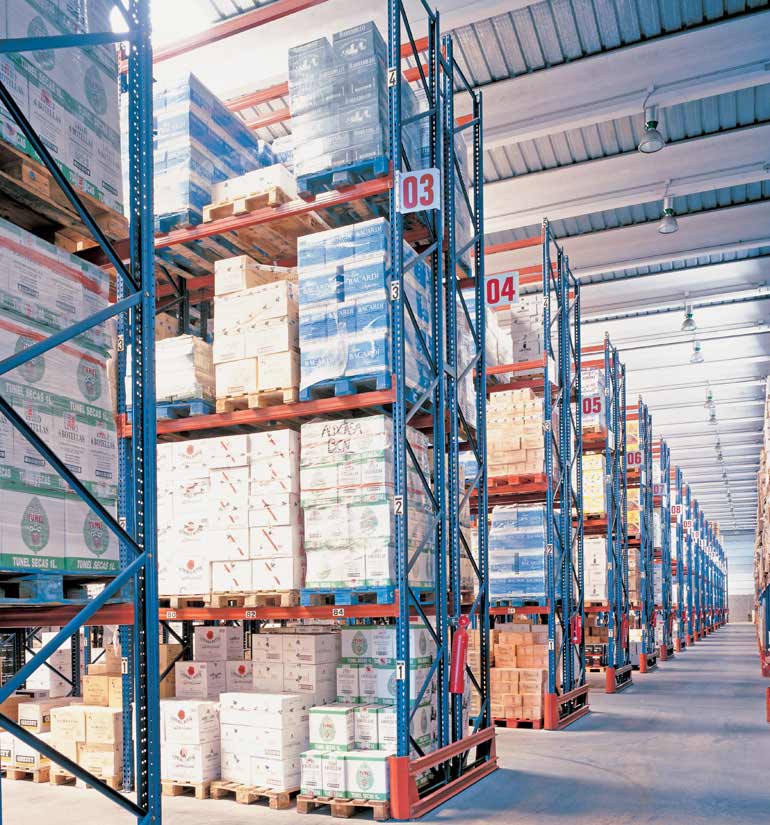

Distribution warehouse

One company's distribution warehouse.




Example 2. Pallet racks with reach trucks. 678 pallets per level.

System: selective pallet racks

Handling equipment: reach trucks

Aisle: 9.02 ft. A minimum of 9.4 ft between the racking units.

Capacity obtained: 678 pallets per level.






Warehouse layout 2

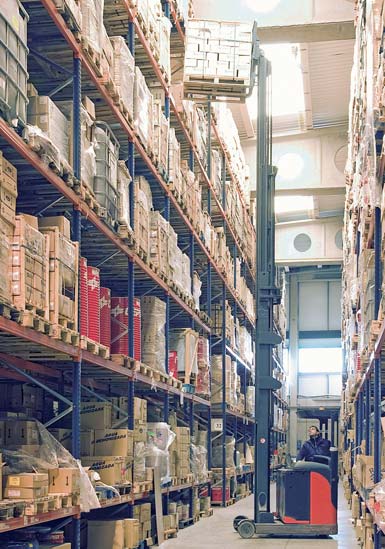

Warehouse of a logistics operator

Warehouse of a logistics operator.







Example 3. Pallet racks with trilateral turret truck or stacker crane. 840 pallets per level.

System: selective pallet racks.

Handling equipment: trilateral turret truck or stacker crane.

Aisle: 5.6 ft. A minimum 5.9 ft between racking units.

Capacity obtained: 840 pallets per level.

Please note: A stacker crane can work in a 4.9 ft wide aisle between loads, so the width of the space available in the example would be 131.2 ft instead of 138.1 ft to obtain the same result.




Warehouse layout 3

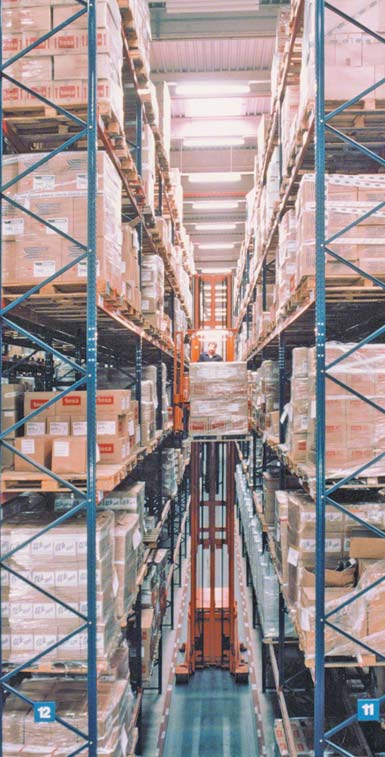

Trilateral turret truck run warehouse

Trilateral turret truck run warehouse.

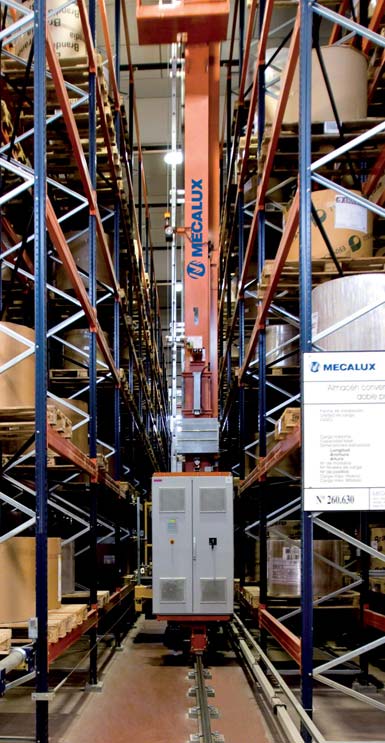

Automated paper reel warehouse

Automated paper reel warehouse.





Example 4. Pallet racks with double-deep stacker cranes. 1,008 pallets per level.

System: double-deep pallet racks.

Handling: stacker crane.

Aisle: 4.9 ft. A minimum 5.2 ft between racking units.

Capacity obtained: 1,008 pallets per level.

Please note: as in example 3, for this installation the warehouse would be 131.2 ft wide instead of 137.8 ft.








Warehouse layout 4

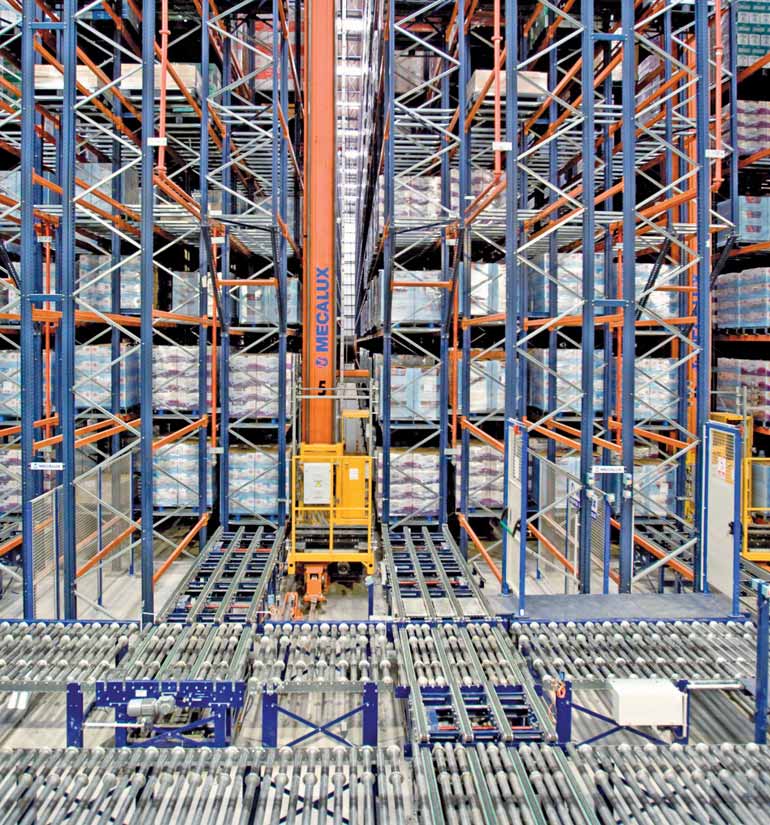

Consumer products warehouse

Consumer products warehouse.





Example 5. Pallet racks on mobile bases. 1,144 pallets per level.

System: pallet racks on mobile bases.

Handling equipment: forklifts.

Aisles: two, each 12.3 ft wide. Two forklifts can pass each other (observing suitable margins).

Capacity obtained: 1,144 pallets per level.





Warehouse layout 5

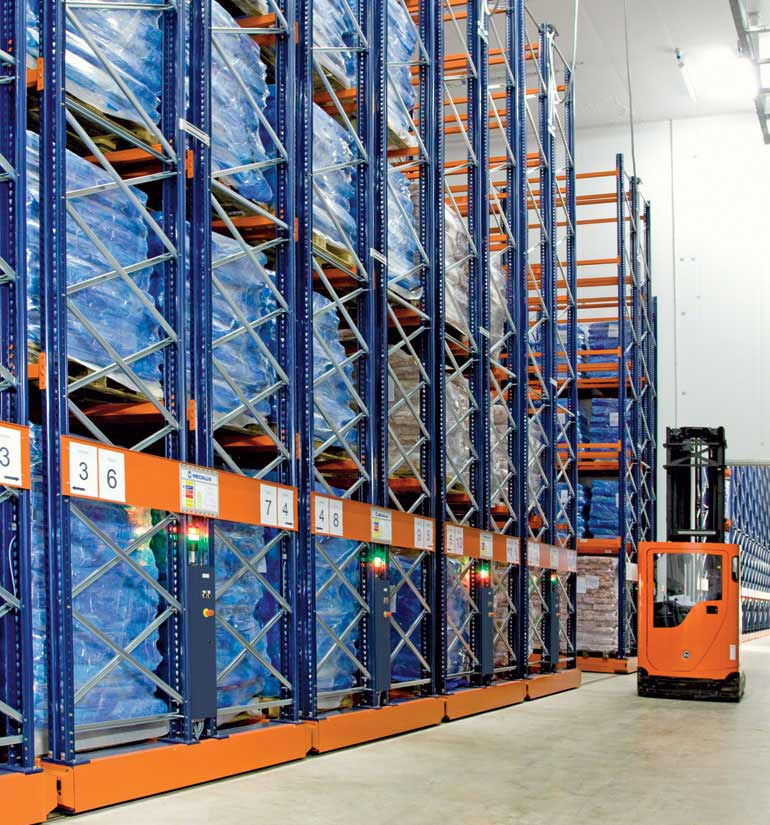

Frozen meat warehouse

Frozen meat warehouse.







Example 6. Drive-in pallet racks. 960 pallets per level.

System: Drive-in pallet racks.

Handling equipment: forklifts

Aisle: 11.5 ft wide, where two forklifts can pass each other.

Capacity obtained: 960 pallets per level.





Warehouse layout 6

Drive-in pallet racking






Example 7. Push-back with trolleys. 848 pallets per level.

System: push-back with trolleys.

Handling equipment: forklifts.

Aisle: At least 11.5 ft.

Capacity obtained: 848 pallets per level.





Warehouse layout 7

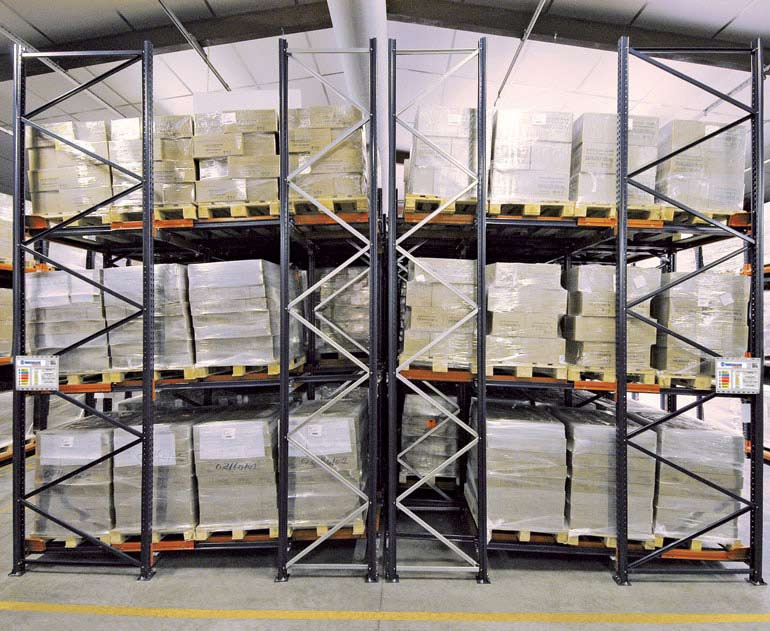

Push-back racks with trolleys

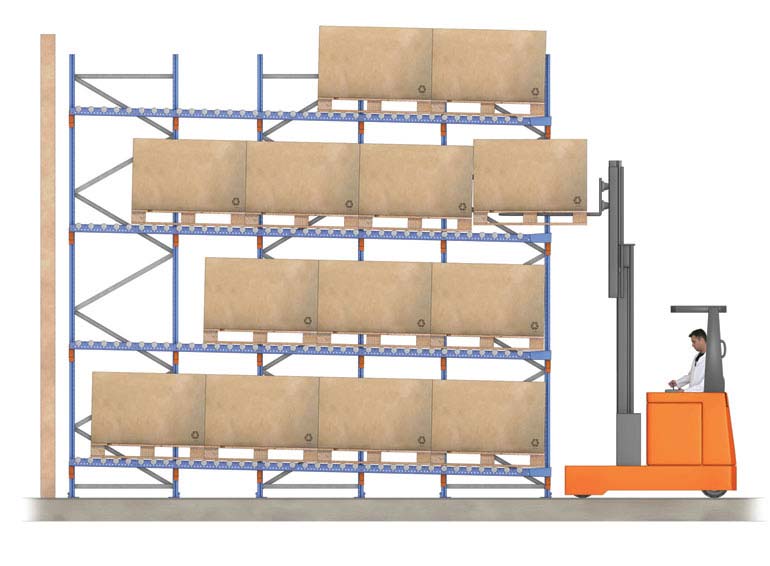

Example 8. Push-back with rollers, 893 pallets per level.

System: push-back with rollers

Handling equipment: forklifts.

Aisle: At least 11.15 ft.

Capacity obtained: 893 pallets per level.




Warehouse layout 8





Example 9. Pallet racks with Pallet Shuttle. 1,080 pallets per level.

System: pallet racks with Pallet Shuttle.

Handling equipment: forklifts.

Aisle: At least 11.5 ft(space for two forklifts to pass each other).

Capacity obtained: 1,080 pallets per level.




Warehouse layout 9

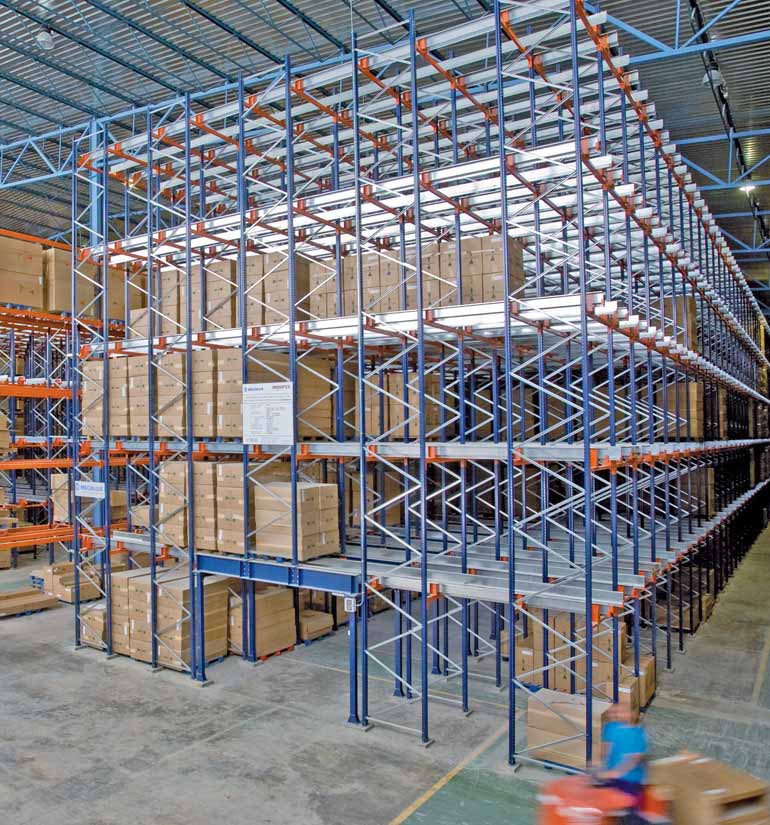

Furniture kit company

Furniture kit company.





Example 10. Pallet flow racks. 910 pallets per level.

System: pallet flow racks.

Handling equipment: forklifts.

Aisle: At least 11.15 ft.

Capacity obtained: 910 pallets per level.





Warehouse layout 10

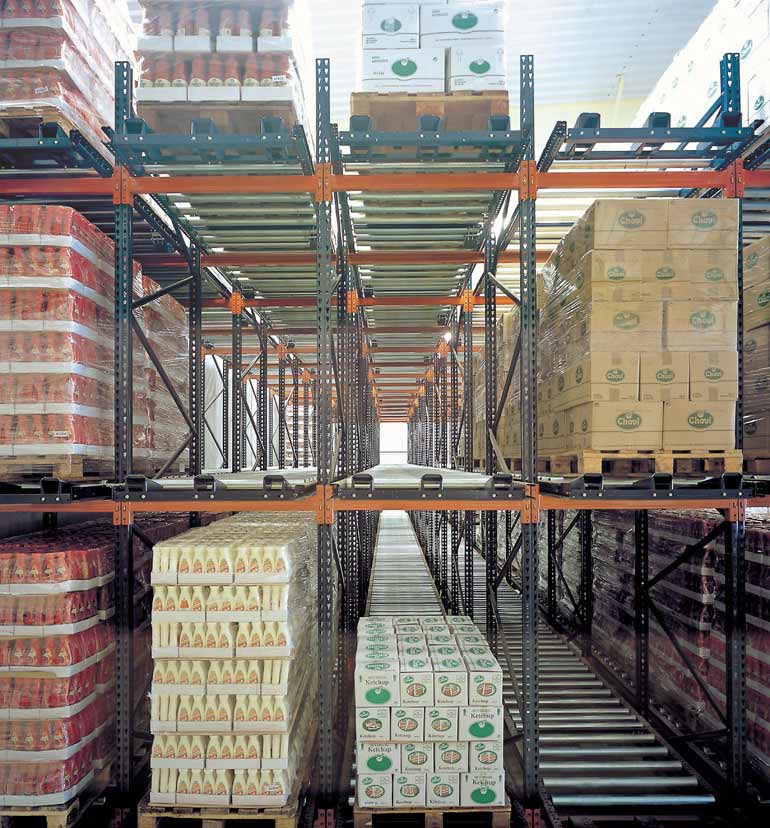

Juice maker's warehouse

Juice making business.





Comparative table of physical capacities
Available surface area: 19,030 ft2

Storage system Pallets per level Surface area for pallets Ratio (proportion of the site filled with pallets)
Pallet racks with counterbalanced forklifts  594  6,135 ft2 32.2 %
Pallet racks with reach trucks  678  7,007 ft2 39.2 %
Pallet racks with trilateral turret trucks or stacker cranes  840  8,676 ft2 45.7 %
Double-depth pallet racks operated by stacker cranes  1,008  10,419 ft2 54.9%
Pallet racks on mobile bases  1,144  11,819 ft2 62.2 %
Drive-in pallet racks with reach trucks  960  9,924 ft2 53.8 %
Push-back with trolleys  848  8,762 ft2 46.0 %
Push-back with rollers  893  9,225 ft2 48.0 %
Pallet racks with Pallet Shuttle  1,080  11,162 ft2 58.8 %
Pallet flow racks  910  9,408 ft2 47.6 %



Volume capacity is not linear since there are always other influencing factors, like the useful height of a warehouse and the optimization of the height of the pallets. Another determining factor is the constructive system, since the flow racks produce a height loss due to the slope this system uses; in the double-depth installations with stacker cranes there needs to be a larger separation between the levels, for example; and in other cases support profiles are required and a specific height in level one.

This table is for informational purposes only and refers to the physical capacity only, not the effective capacity.
