A global benchmark in automated rack supported warehouses

Hayat Kimya

Hayat Kimya is a leading manufacturer in the Eurasian fast-moving consumer goods market, specifically in the sector for hygiene and cleaning products. Founded in 1937, with its headquarters in Turkey, the company currently has 5,200 employees and exports to 101 countries. With growth forecast for the coming years, the decision was made to invest in the construction of one of the largest rack supported warehouses in Europe, with a capacity of 161,000 pallets.

  • Pictures
  • Aerial view of Hayat Kimya’s spectacular automated rack supported warehouse

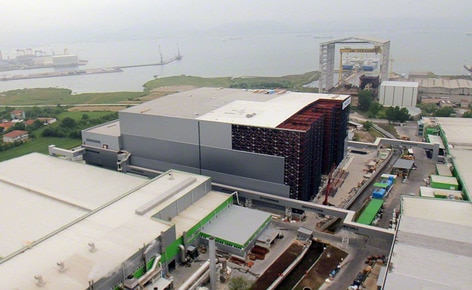

    Hayat Kimya’s automated rack supported warehouse under construction
    Four raised tunnels connect the production plants to the silo
    Four elevators transport goods between the different levels
    Double-cradle stacker crane placing the goods on the racks in the silo
    The installation has 0.6 miles of monorail tracks
    The receipt and dispatch areas are served by electric monorails
    The new automated warehouse allows a daily average of 7,000 pallets to be dispatched
  • Videos
  • Technical Specifications
  • Download PDF

The Customer’s Needs

At Hayat Kimya’s production headquarters in Izmit, Turkey, a large industrial facility could be found, covering an area of more than 88 acres, including a warehouse and three production plants: One for detergents, one for hygiene products and one for disposable tissue paper and toilet roll.

Given Hayat’s vast increase in production in recent years, in order to satisfy the growing demand in the shortest possible time and with the utmost efficiency, the company was faced with the need to build a new logistics center that could support this increase in production and speed up the flow of goods in and out of the warehouse.

One of the primary goals that the company set out to achieve was the elimination of the transportation between the different sites within the facility, thus ensuring smooth and uninterrupted movement between the production plants and the logistics center, not to mention the savings in terms of time and money that this would bring. Furthermore, a basic tenet of their plan was to ensure that the new center was big enough to eliminate the need for external warehouses.

Having laid out their primary objectives, Hayat Kimya entrusted Mecalux with the construction of a warehouse capable of undertaking all of their logistical management and storage, bringing it into a single, automated system: The intake of goods, their storage, order preparation and dispatch were all to make up an integrated final product capable of handling the immense volumes of production.

Mecalux’s Proposed Solution

Without a doubt, the sheer size made the project a challenge for Mecalux. The first step was to build a rack supported warehouse that could meet the customer’s needs, with dimensions far exceeding those of a conventional warehouse: 390 feet long, 340 feet wide and 150 feet high. For the structure, given the area’s high seismic risk, more than 11,000 tons of steel were used (including more than 2,000 tons of extra seismic reinforcement), and reinforced anchoring. The result was 135,000 square feet with capacity to store 161,000 pallets. If that number of pallets were placed in a line, they would cover a distance of 120 miles, which gives an idea of the capacity of this warehouse.

The next step was the careful planning of the layout for the new logistics center, where it was decided to include different levels and areas connected by automated handling equipment:

Silo:

Served by 15 AS/RS stacker cranes, which place the goods on single and double-depth racking, spanning the full height of the warehouse’s 24 levels. The stacker cranes have a joint capacity of 480 combined cycles.

Operations building with four floors:

  • Ground floor: Goods are received from the detergents plant (a mile and a quarter away), via an automated unloading system for trucks and 0.25 miles of electric monorails, which move at nearly 330 feet/minute and are also used to dispatch pallets. The first floor dispatch area also has 17 dynamic channels with a capacity of 33 pallets each.
  • First floor: Offices.
  • Second floor: Dedicated to picking operations and divided into two areas: One for manual picking with selective pallet racking, and another for automated picking using dynamic channels served by four shuttles, for products of higher rotation. Goods reach this area via four elevators, which transport them from the fourth floor. Once the pallet is complete, it is baled, labeled and sent, via two elevators, to the dispatch area on the first floor, which is served by electric monorails.
  • Third floor: This is the entrance to the silo from the plants for hygiene and paper products via more than 1,476 feet of electric monorails.

The production centers and the silo are interconnected by four raised tunnels, fitted with accumulation conveyors and elevators with double load capacity, so pallets can be brought from the three production plants to the logistics center and positioned on the right level for entry into the warehouse.

Lastly, to allow the whole system to work like clockwork, Mecalux has installed its most advanced control and monitoring technology and its management software Easy WMS, which controls, coordinates and optimizes all of the logistics processes at Hayat Kimya, as well as allowing excellent stock control and a real-time inventory.

To summarize, in the words of Umit Ügur, plant manager of Hayat Kimya: “The most important thing in the construction of an automated warehouse is to properly identify and specify at the outset what the needs and expectations are. All processes can thus be designed in the most appropriate manner. The more accurate the initial design, the more efficiency and profit can be obtained from the automated warehouse.”.

Advantages for the Customer

The construction of a logistics center carefully adapted to suit their needs, the use of innovative technology in storage systems, the automation of all processes and the implementation of management software Easy WMS have all allowed Hayat Kimya to meet their goals of increasing productivity and improving customer service with the utmost efficiency, and at the lowest possible cost.

As Tarik Demiryakan, head of logistics at Hayat Kimya, comments: “At Hayat Kimya we have invested heavily in this warehouse and we are very pleased that we are receiving an immediate return on our investment. We have saved a lot of money by closing external warehouses and by creating a centralized repository that has allowed us to eliminate transport between different locations. Currently, the goods are moved between each process without human handling.”.

The following are some of the advantages experienced immediately:

  • Reduction in the time needed for all goods movement operations.
  • Large increase in the number of movements of goods in and out of storage.
  • Uninterrupted operation: The system of entry and dispatch of trucks is in operation 24 hours a day, seven days a week, and in peak periods, is capable of handling up to 400 incoming pallets/hour, and 450 outgoing pallets/hour, with an average of 6,500 pallets coming in and 7,000 pallets leaving each day.
  • Integrated goods receipt, preparation and dispatch processes thanks to the management software Easy WMS. In the words of Celalettin Dizman, director of systems and operations development, “with the help of the Mecalux team, we have implemented most of our functional processes with the WMS. We have a great system that is fully integrated from the start of production to the loading of the truck”.
Logistics centre in Izmit, Turkey
Length: 393.7 feet
Width: 344.5 feet
Height: 150.9 feet
No. aisles: 15
Aisle width: 70.87 inches
No. stacker cranes: 15 double-cradle stacker cranes (147.6 feet high)
No. elevators: 12
Electric monorail: 0.6 miles of rails
Conveyors: 0.6-mile circuit
Shuttles: 4
Dynamic picking channels: 17
Warehouse Management Software: Easy WMS
No. load levels: 24
Height of load levels: 68.9 inches
Capacity per storage space: 3 pallets per space x double-depth
Unit load: Euro pallets of 31.5 x 47.24 inches weighing 1,545 lbs. for detergents and 990 lbs. for hygiene and disposable tissue products
Total capacity: 161,000 pallets
