Interlake Mecalux pick modules increase efficiency of Benco Dental's distribution center

Interlake Mecalux pick modules increase efficiency of Benco Dental's distribution center

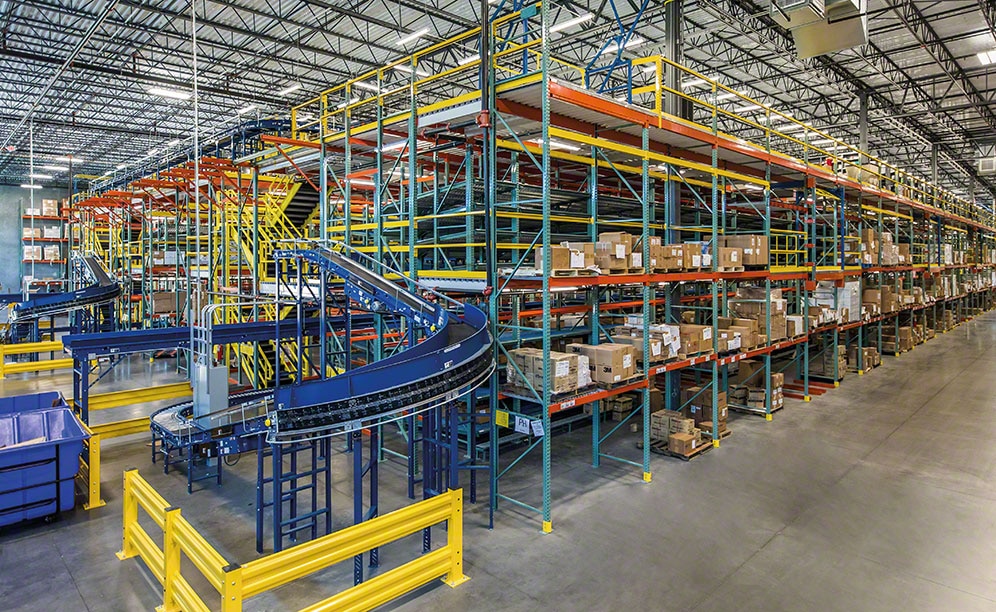

Benco Dental's distribution center in Jacksonville, Florida

Interlake Mecalux pick modules increase efficiency of Benco Dental's distribution center

Benco Dental, dedicated to the distribution of dental supplies, has a large distribution center used mainly for picking operations in the city of Jacksonville, Florida. The installation supplied by Interlake Mecalux has a twin, three-level pick module that includes carton flow and selective pallet racking.

  • Pictures
  • Technical Specifications
    Benco Dental's distribution center - Twin pick modules
    No. of carton flow bays: 173
    Height: 21'
    Length: 200'
    Width: 126'
    No. of floors: 3
    Area: 25,200 ft²
    Benco Dental's distribution center - Selective pallet rack
    Pallet positions: 2,880
    Pallet type: GMA
    Pallets per level: 2
    Height: 26'
    No. of aisles: 7
  • Download PDF

About Benco Dental

Benco Dental is a distributor of dental supplies, equipment, service and technology throughout the United States. The company, which has been in existence for 85 years, is the largest privately owned dental distributor in the country, selling anything from toothpaste and toothbrushes to dental chairs and X-ray machines. The business started out in the northeast with one distribution center and has been branching out ever since. Benco Dental opened one if its main distribution centers in Jacksonville, Florida, in 2002 and since then has added DCs in Fort Wayne, Indiana, Dallas, Texas, and Reno, Nevada. Pick modules have been provided by Interlake Mecalux in each of these locations as well as at Benco Dental's corporate headquarters and distribution center in Pennsylvania.

The needs of Benco Dental

With nearly $750 million in sales in 2017 alone, Benco Dental has been experiencing explosive growth. The company had already expanded its Jacksonville, Florida, distribution center a number of times since moving into the 70,000 ft² building in 2002. While that freed up space in the warehouse, the setup was disjointed and not very efficient. The building featured only a mezzanine over the picking area that had flow rack and some pick shelving on the second floor. Benco Dental needed a new distribution center to accommodate the 22,000 SKUs it works with and, in turn, carry out picking in an efficient manner. With these constraints in mind, Benco Dental sought the advice of warehouse storage solutions provider Interlake Mecalux in equipping a new 130,000 ft² distribution center only 12 miles away. Benco Dental had already previously worked with Interlake Mecalux on equipping several of its other distribution centers, so they knew they could trust Interlake Mecalux to come up with a viable solution.

Interlake Mecalux’s solution

After analyzing Benco Dental’s needs, Interlake Mecalux supplied twin, three-story pick modules with a bridge between them. The facility also features selective pallet racking. By utilizing the height of the new warehouse with pick modules that have three floors, Benco Dental’s new system is 40 percent larger than the old setup in its former Jacksonville warehouse. “With three floors, we have a lot more space with less square footage,” said Doug Jones, Benco Dental distribution center operations manager. “We multiplied that space by going higher. That gave us a lot more room and it also increased our efficiency from a process flow standpoint.”

The first and second levels of the pick modules contain carton flow racking, which has slightly inclined wheel and roller platforms. Operators deposit goods on the high end of the rack allowing gravity to pull the products down to the far end, positioned at the exit aisle, creating a first-in, first-out picking system.

There are different zones throughout the pick module. Orders start out on the second floor and travel to the different zones via a conveyor circuit. The 200’ long, 126’ wide, 21’ high pick module allows the preparation of products in the three walkway levels, all linked together by the conveyor circuit.

The circuit crosses each of the floors down the center and in front of the carton flow storage racks and moves the merchandise to the checking and packing area. The operators, working by zones, use the tables placed on both sides of the circuit to prepare the orders with the products they collect from the shelves. Once the order is complete, the operator deposits the tote in the central circuit so that it reaches the next zone, where another operator will repeat the same process. The top elevation was designed as a fully decked "dance floor" to support a small refrigeration unit as well as static shelving for hand picking.

Access to the different walkway levels is available via strategically located staircases that prioritize accessibility and maximum safety of both the installation and the operators. The pick module also features a fully decked bridge to a mezzanine. In addition, the second elevated level has pivot gates on each corner that are strategically located to support the hand pick shelving on the top elevation.

Pallet racking

There also are pallet racks to store reserve goods used for picking. The rack assembly offers a storage capacity of 2,880 pallets. Each block of pallet racking is 26’ high and has four storage levels at two 40” x 48” pallets per level.

Room to grow

The end result of this installation is that process flows have become much more efficient, with product received at one end of the warehouse, order processing taking place in the middle, and dispatching carried out at the other end of the building. The facility also has additional space remaining, should Benco Dental need to expand in the future as the company continues its success. “We’re a growing company and our growth every year has been pretty good,” said Michael Mangan, special projects coordinator for Benco Dental. “We’ve gotten to a point where we don’t want to be having to revisit these distribution centers in a couple of years at capacity. By utilizing the space more efficiently, it just gives us more availability for growth.”

Advantages for Benco Dental

  • Space optimization: Benco Dental has taken advantage of the height of its new building by implementing twin pick modules with three floors.
  • Increased productivity: by installing the three-story pick module, Benco Dental has been able to streamline picking.
  • Greater efficiency: Benco Dental has been able to improve process flows with a more organized layout.
  • Diversity: installed solutions enable the storage of a wide variety of products of different weights and dimensions.
Benco Dental's distribution center - Twin pick modules
No. of carton flow bays: 173
Height: 21'
Length: 200'
Width: 126'
No. of floors: 3
Area: 25,200 ft²
