The warehouse of the logistics operator Grupo Alainé in France

The warehouse of the logistics operator Grupo Alainé in France

The warehouse of the logistics operator Grupo Alainé lets it load and unload 2,500 pallets a day

The warehouse of the logistics operator Grupo Alainé in France

Groupe Alainé has expanded its Mâcon installations (in France) to accommodate the new production line of one of its customers. To do so, Mecalux has equipped a 1.98 acre floor space with the semi-automatic Pallet Shuttle system that offers a total 20,397-pallet storage capacity. This solution is ideal for housing large volumes of pallets per SKU in channels that run up to 141' deep, as well as for managing the loading and unloading of 2,500 pallets a day.

From production to customer

Founded in 1945 in the town of Mâcon (France), Groupe Alainé is a well-known logistics operator in France that owns and operates more than 86.5 acres of warehousing space. It supports all types of business with effective solutions, despite the industrial sector, such as cosmetics, food and beverage, construction and e-commerce.

Throughout the years, Groupe Alainé has expanded its sales network and, currently, operates in more than twenty countries. Besides France, it has offices in Luxembourg, Portugal, the Netherlands, Belgium, Germany, Slovakia, Poland and the United Kingdom. The company’s objective is to be as close as possible to its customers so that it can iron out order details as soon as possible, regardless of the deadline, destination or product type.

Part of its success is due to its commitment to customer service and its sense of entrepreneurship. As a result, its sales have kept growing in parallel with the demand level it is experiencing. Recently, the company has opened a new warehouse in Mâcon. It involves an expansion of its old distribution center; before it had 5.19 acres and, now, it has added 1.98 more acres of warehousing area.

This space has been allocated to housing products from a popular juice maker. According to Jérôme Ezcurra, operational manager of Groupe Alainé, “we had to support our customer’s growing business, so we set up a new production line. As a consequence, we had to increase our storage capacity.”

Jérôme Ezcurra - Operations manager at Groupe Alainé
“Mecalux is a long-time partner of Groupe Alainé. The technical team understood the logistics needs we put forward and it found a solution that would help us strengthen our growth potential.”

Advantages of the Pallet Shuttle system

Mecalux has equipped the new warehouse with 18 blocks of racks run by the Pallet Shuttle system. In the words of the operations manager, “it is a tech-savvy solution, that will continue to do the job even as we grow.”

Currently and after it was up and running a while, the company felt highly satisfied with the results provided by the installation. As Jérôme Ezcurra explains, “the Pallet Shuttle system has brought many advantages to the table, like better utilization of our storage surface, reduced movements by our operators and, finally, floor optimization.”

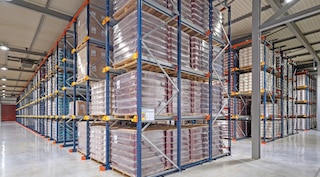

The racking is 36' tall, divided in five levels, and fills almost the entire warehouse’s surface to yield a higher storage capacity. Some of the blocks have up to 141' deep channels, where 49 pallets can be housed. Thanks to this solution, Groupe Alainé can store 20,397 pallets in total, with a 1.04 t maximum unit weight.

The Pallet Shuttle system means SKUs can be grouped in each channel, instead of using an entire lane for the same SKU. This has had enormous benefits for Groupe Alainé by making it possible to diversify its warehouse and deposit more items.

Besides the storage capacity, Groupe Alainé has become more productive. The reason is that the automatic shuttle is the device in charge of inserting and extracting pallets from inside the channels automatically. Workers, operating reach trucks, must only place the Pallet Shuttle in the corresponding channel and set the pallets in the first slot of the racking. Thus, the operators’ movements are optimized because, in fact, the shuttle moves the load on its own up to the pallet’s set location.

Another advantage of including an automatic shuttle is that loading and unloading times are reduced, by eliminating operators moving inside the storage lanes. This is essential to store the more than 2,000 pallets that arrive on a daily basis from different points in Europe (mainly, France, Germany and Spain). Operators carry a handheld control tablet (with Wi-Fi) to run the Pallet Shuttles remotely. The tablet’s monitor is highly-intuitive and requires no specialized training to use. Then, from the device, workers can execute numerous apps and functions, like choosing how many pallets must be inserted or extracted or carrying out an inventory count.

“After using the Pallet Shuttle system for a while, we feel the installation is getting the job done, and we are happy with how the whole setup is running,” said the operations director.

Storage channel depth

All pallets flowing into the channel must be added together to calculate the channel’s depth, plus the span between the unit loads and the clearance gaps needed to insert the automatic shuttle.

The dimensions of the channels and, as such, the racks are subject to different factors:

  • Available in-warehouse surface area.
  • Number of pallets that must be stored.
  • Product rotation. The channels’ depth must guarantee the pace of product inputs and outputs the company needs.

Complete preloading zone

Two preloading zones were set up since this is a very large-sized warehouse. There, pallets from the same order or route are grouped together on the floor, expediting the subsequent loading of transportation vehicles.

These zones include a transfer car, tasked with distributing pallets to the flow channels, which are deep enough to hold 11 pallets each. Roller channels are slightly inclined so that pallets slide via gravity from the highest to the lowest point, which faces the docks. The rollers have a split setup at the exit point, meaning pallet trucks can slip their forks in to extract the pallets..

Advantages for Groupe Alainé

  • Bigger storage capacity: By expanding its warehouse, Groupe Alainé has increased its storage capacity, housing 20,397 pallets in up to 141' deep channels.
  • Better productivity: The Pallet Shuttle system ensures the slotting and retrieval of 2,500 pallets from the racks daily.
  • Operational speeds: The automation of the Pallet Shuttle system and the conveyors speed up all in-warehouse operations, a vital step forward in supplying Groupe Alainé’s customers as quickly as possible.
Warehouse Groupe Alainé
Storage capacity: 20,397 pallets
Pallet size: 32" x 48"
Max. pallet weight: 1.04 t
Rack height: 36'
Max. channel depth: 141’
No. of shuttles: 10
