The Customer´s Needs
The strategic business model of Banca March currently focuses on private banking, large companies and asset management, and is very focused on family businesses, as well as high income.
In order to manage the large amount of documentation generated by its branches and at the same time meet the legal obligation to preserve record books, correspondence, documents and evidence relating to the business for a minimum period of six years, the bank needed to centralize all their documentation into a single warehouse as it was not possible to save these files in each branch due to capacity issues.
In addition to conserving the documents, Banca March also needed to have quick and orderly access to any of the documents stored since consulting them at any point in time might be required.
The first step the bank took to resolve this need was to recruit the services of a logistics operations company, to create a document custody warehouse for all documentation generated by its branches. The second step was to implement the warehouse management software, Easy WMS from Mecalux, to control, manage and maintain all its files in perfect order.
Mecalux’s Proposed Solution
The document custody warehouse designed for Banca March is 10,764 ft2 in size and has a maximum height of 23’. The load units are boxes 15”x 10” x 11” in size with an approximate weight of 33 lbs. each.

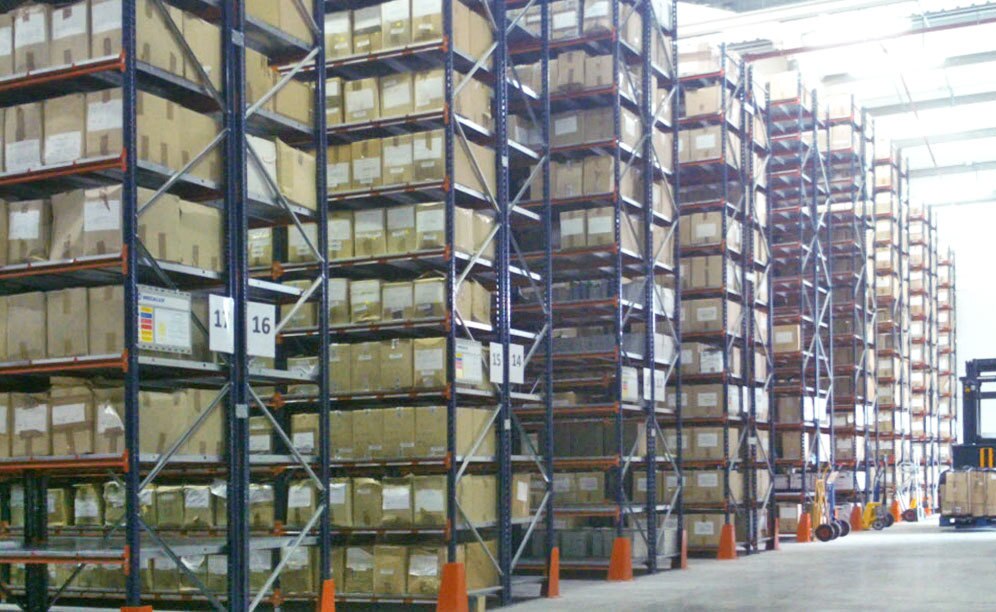

To accommodate all the boxes of documentation, the surface area of the warehouse has been optimized using wide span manual picking shelves from Mecalux that allow the full use of the entire height of the warehouse with the aid, in this case, of a trilateral forklift. In all, 17 wide span shelves with 8 working aisles have been installed, which offers a storage capacity of 50,850 boxes, for 39,800 different items. The warehouse also has a mixed reception dock with a buffer area attached.
In order to manage the considerable amount of information generated, it is essential to use a warehouse management system that makes it possible to record all items, and check inventory and the locations of each item. Banca March has relied on Mecalux and its Easy WMS to carry out this task.
Set up is very simple and is based on an operational standard of easy implementation:
- Create an item master record, wherein each item is unique and corresponds to the name of the branch + month + year, spanning a maximum of 10 years per branch (most of the documentation past the legal period established by the “code of commerce”, which is a minimum of 6 years, will be destroyed).
- Reception: when the documentation is received from a branch, it is deposited into a box that is identified with a barcode label that corresponds to the location of the item, and another barcode label that corresponds to the ID number of the container. This process of standard reception with Easy WMS is performed mainly using the option of double blind reception.
- Location: a criteria of “chaotic location” is used (there are no pre-assigned locations and items can be located in any available spaces, resulting in maximized space usage). Entries are recorded with the standard Easy WMS procedures to control the localization of the different items.
- Dispatch: items sent out from the Banca March warehouse are done for two main reasons: request of a document by a branch, or for an item to be shredded. In all cases, the output operation of the full container (box) is carried out and never just one of the documents it contains. Operations are performed using standard Easy WMS procedures.
Advantages for the Customer
Banca March has met its storage needs, and has managed the custody and control of the documentation generated by its branches without having to make a large investment. In addition to the wide span picking shelves, the infrastructure is complemented by a trilateral forklift equipped with a radio frequency terminal, a wireless access point, a PC that acts as an Easy WMS server and as a management console, and a barcode label printer.
With these basic elements, the company can currently locate 50,850 boxes and manage 39,800 different items, controlling inputs/outputs, and the locations of each of these items.
Apart from that, only 5 working days were necessary to implement the Easy WMS management software:
- 1 day to configure the warehouse.
- 1 day for operational tests of procedures.
- 3 days for start-up and training.
Mecalux has developed a solution tailored to the needs of the client, so that with an infrastructure and a minimum investment Banca March has met its goal of getting the maximum storage out of the surface area available, and achieving high performance and control of their document custody warehouse.
